Single Light Bar With DRL And Turn Light

Model:NW-OX

Single light bar with DRL and turn light NW-OX is prefect for off-road vehicles, SUV and ATV etc. The off road light NW-OX uses the most advanced reflector technology, adding DRL function, turn light and side shooter light.

Send Inquiry

Product Description
Specification
Dimension
Video

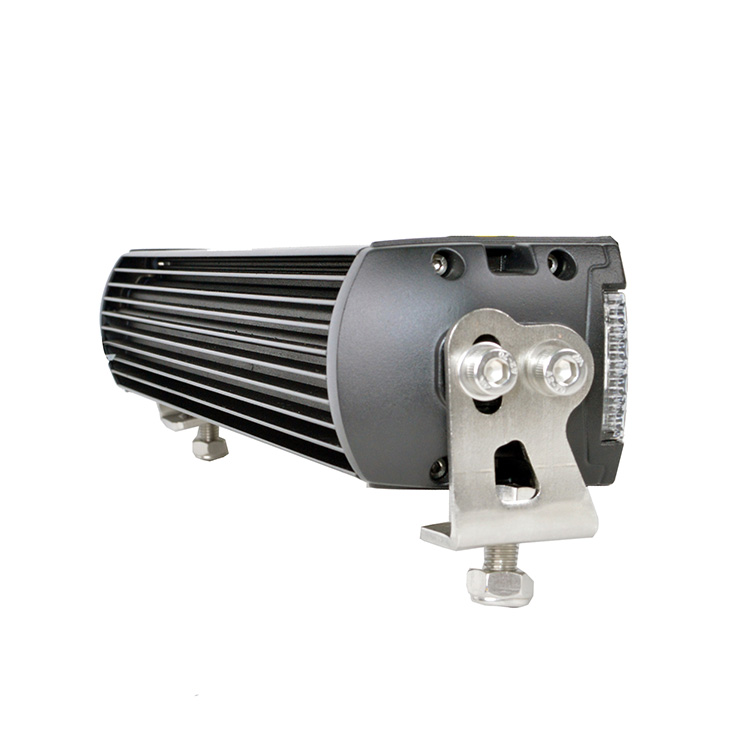

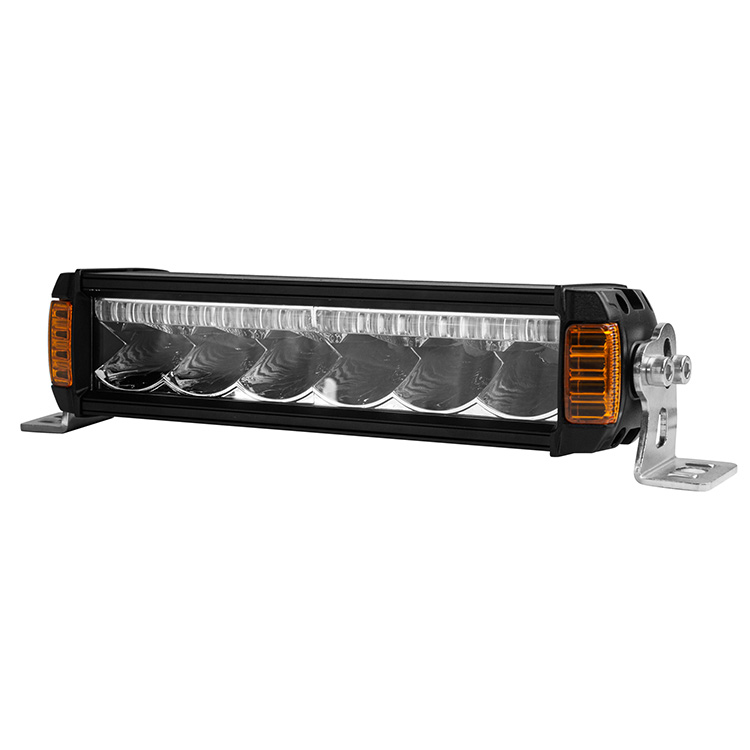

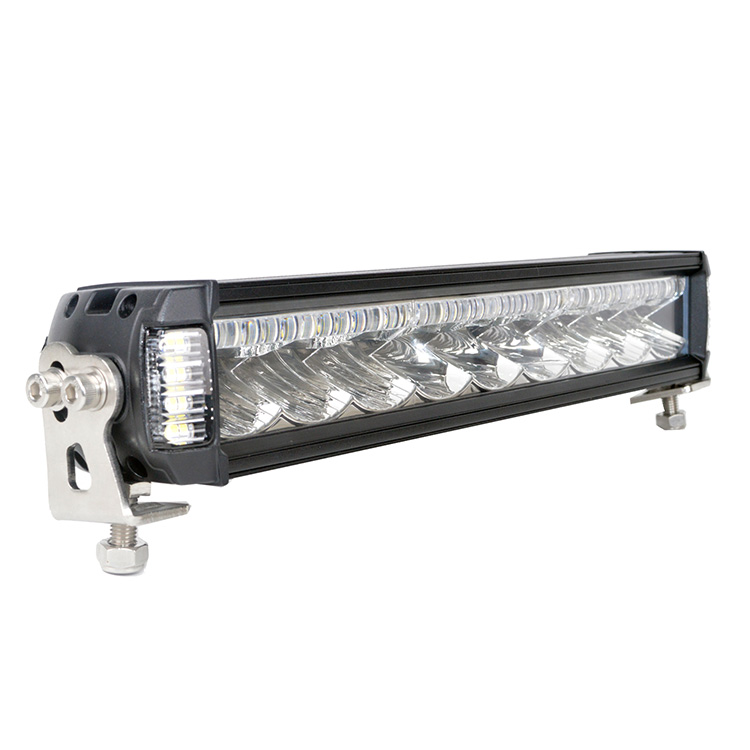

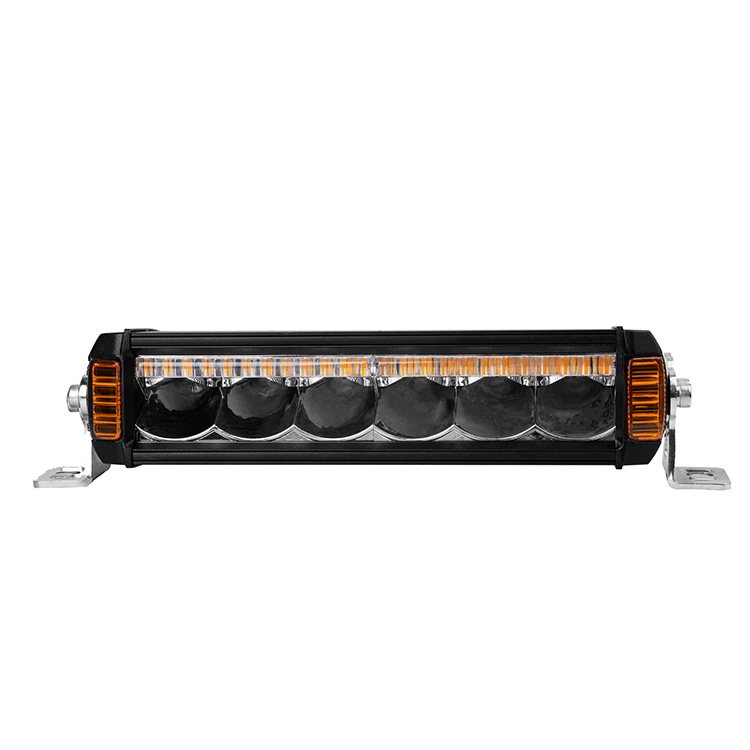

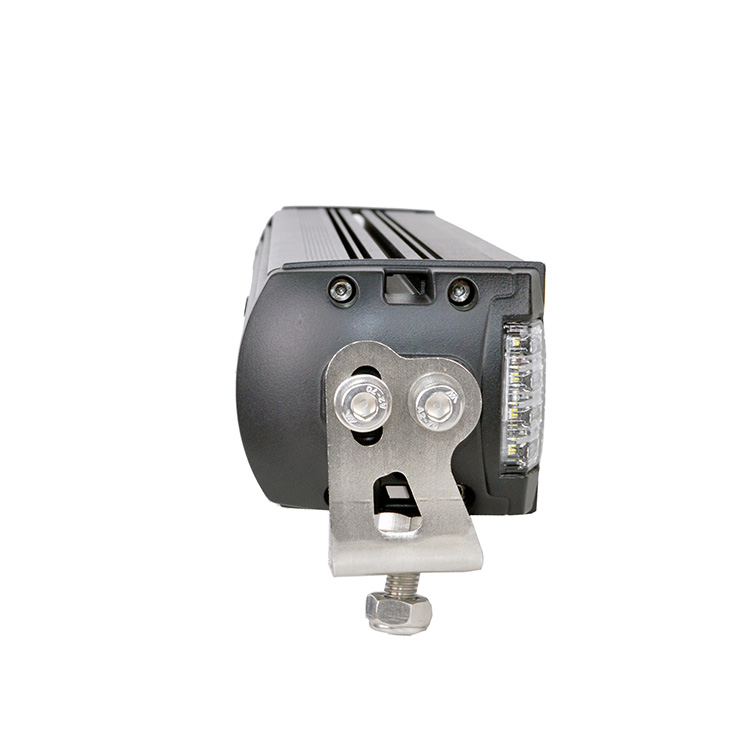

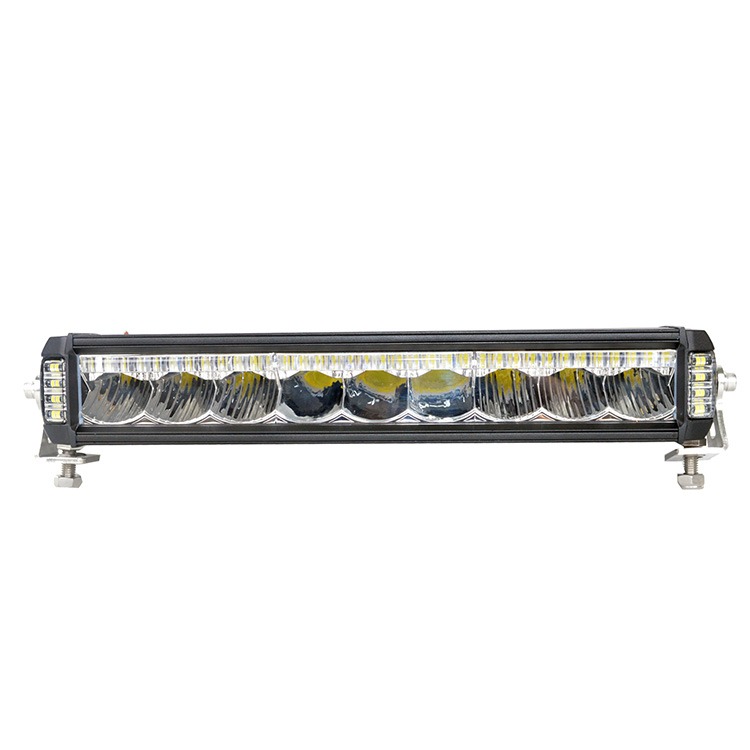

Single Light Bar With DRL And Turn Light NW-OX

■ Product Introduction

The off road single light bar with DRL and turn light NW-OX has 10 kinds sizes, from 7” to 52” meet your different length demands. It is Cisper 25 Class4 approved, the R7 and R112 is in pending. Combined with turning light and DRL function, system control the product cost and labor cost.

■ Features

1.Dual voltage 9-32V.

2.Using Osram 10W LEDs

3.Spot Beam 10", Flood Beam 30"

4.Die-cast aluminum housing

5.Durable polycarbonate lens.

6.Stainless steel hardware .

7.Single light bar with DRL and turn light with DRL function and turning light function.

8.Available with side shooter light

9.Length options, 178mm, 305mm,432mm,559mm,686mm,813mm,940mm,1067mm,1194mm,1321mm

10.Front mounting or top mounting on the vehicles.

11.R10 approved.

12.Operation temperature 6000K

13.Rated IP68 for dust and water resistance

China Single Light Bar With DRL And Turn Light Suppliers

Model	Size	Power	Lumens	LED	Size(mm)
NW-OX7	7	30W	2400	3pcs 10W	1788985
NW-OX12	12	60W	4800	6pcs 10W	3058985
NW-OX17	17	90W	7200	9pcs 10W	4328985
NW-OX22	22	120W	9600	12pcs 10W	5598985
NW-OX27	27	150W	12000	15pcs 10W	6868985
NW-OX32	32	180W	14400	18pcs 10W	8138985
NW-OX37	37	210W	16800	21pcs 10W	9408985
NW-OX42	42	240W	19200	24pcs 10W	10678985
NW-OX47	47	270W	21600	27pcs 10W	11948985
NW-OX52	52	300W	24000	30pcs 10W	13218985
