3 LED Lighthead

Model:O3

The best emergency lighthead O3, 3 LED Lighthead product design concept, make the light be more lighter, more thickness. The lighthead is series design, available with 3leds, 4leds, 6leds and 12leds. All of them can be sync and alternating together. It has ECE R65, ECE R10 certificate, and can also meet SAE standard.

Send Inquiry PDF DownLoad

Product Description
SPECIFICATION
DIMENSION
VIDEO

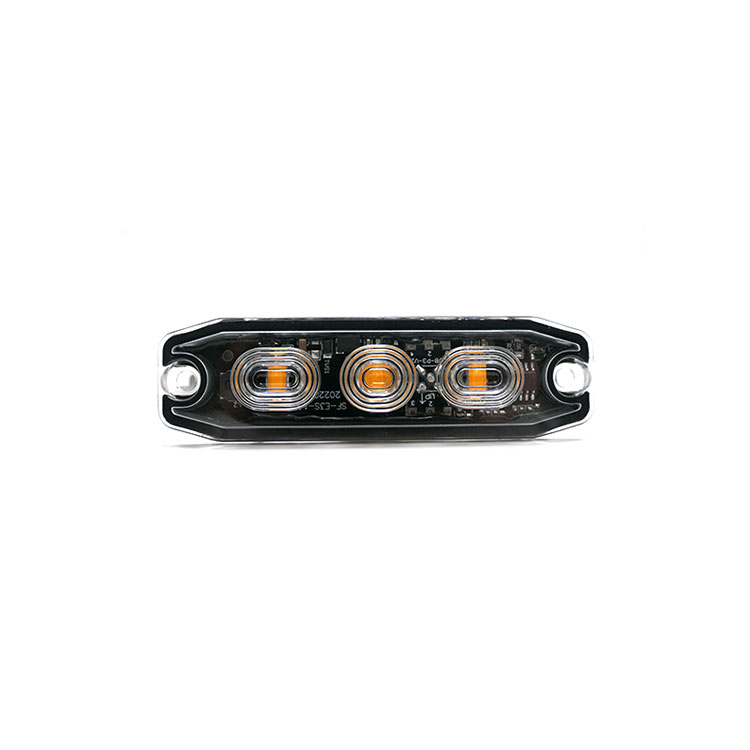

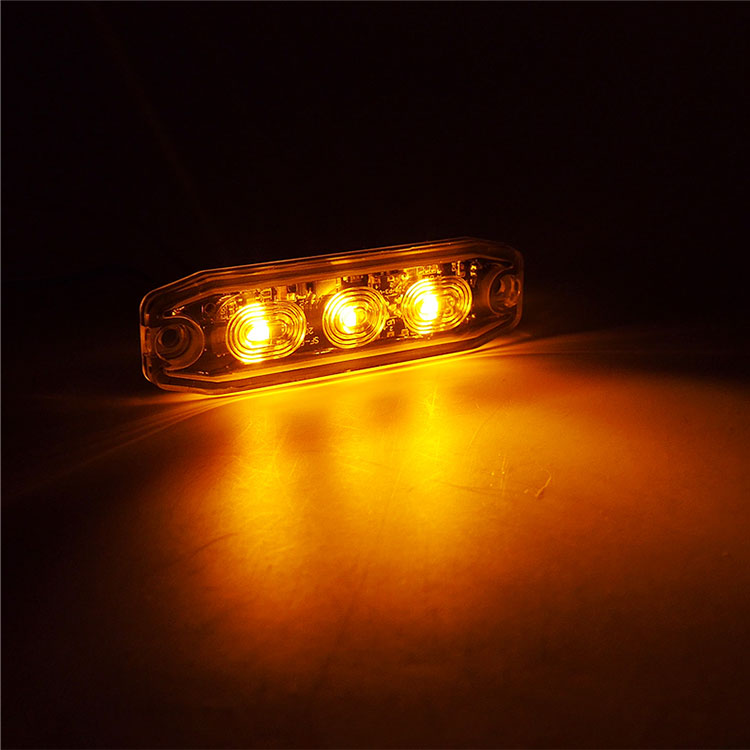

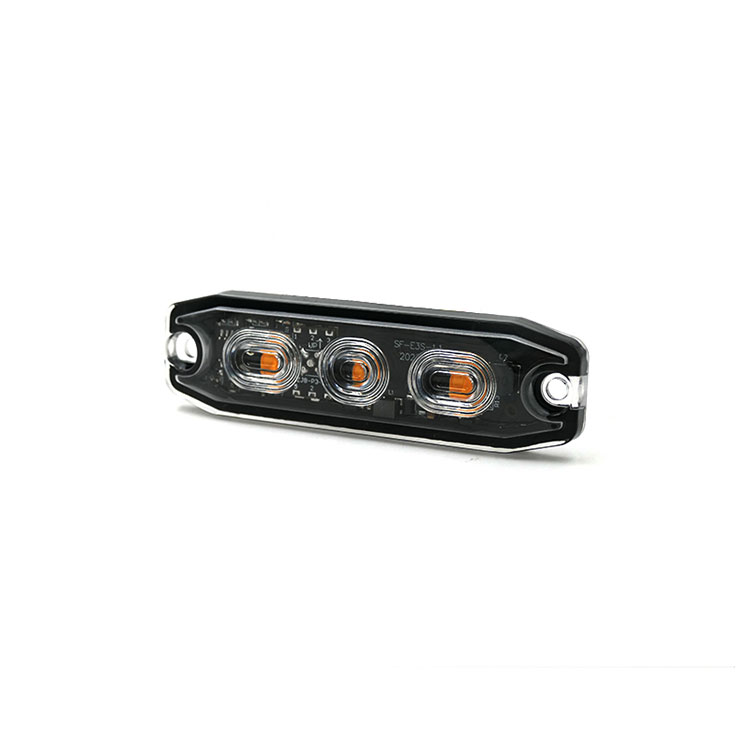

3 LED Lighthead O3

Product Introduction

Our O-Series LEDs lighthead are designed for primary warning, not only the auxiliary functions like so many other similar lights sold today. Optional mounts can be used to set the units behind a grille, on a rear deck, push bumper, or from a headliner.

The design of Lightweight products can be more energy efficient, and environment friendly.

Product Feature And Application

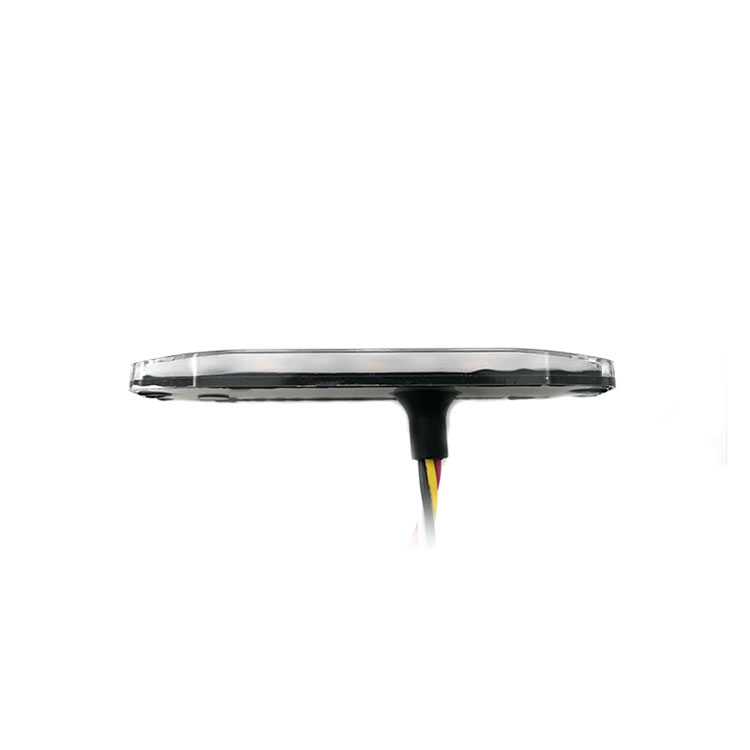

1. Ultra-slim body LED module, only 7mm high

2. Finely designed polycarbonate lens shape produces uncompromising illumination strobe light

3. 3leds, 4leds, 6leds and 12leds module for your options

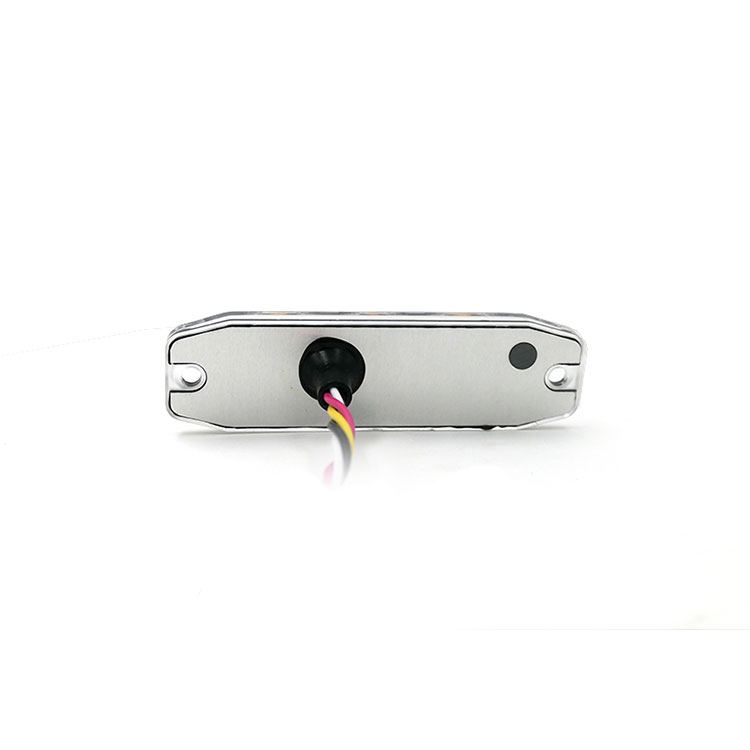

4. 3M tape or surface mount

5. Fully encapsulated for moisture, vibration and corrosion resistance

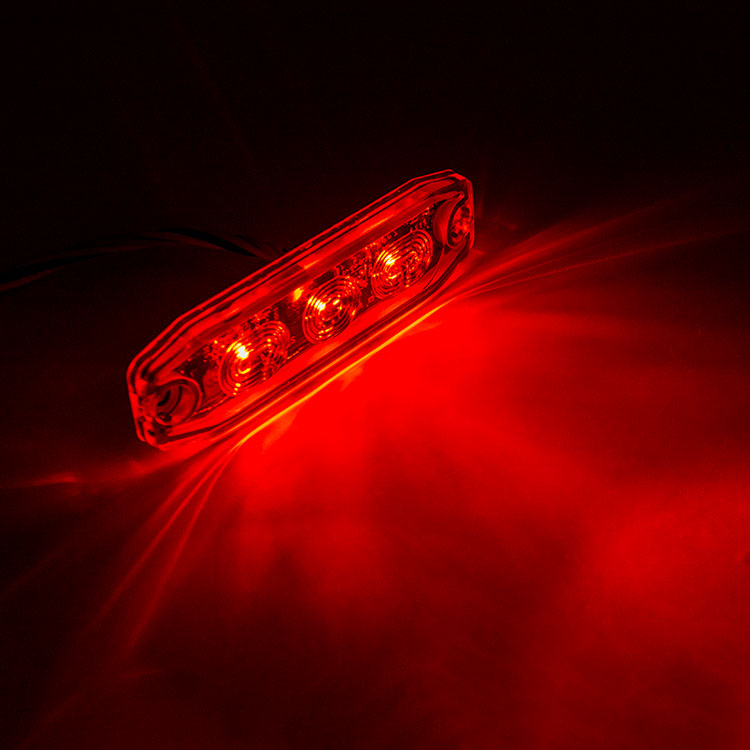

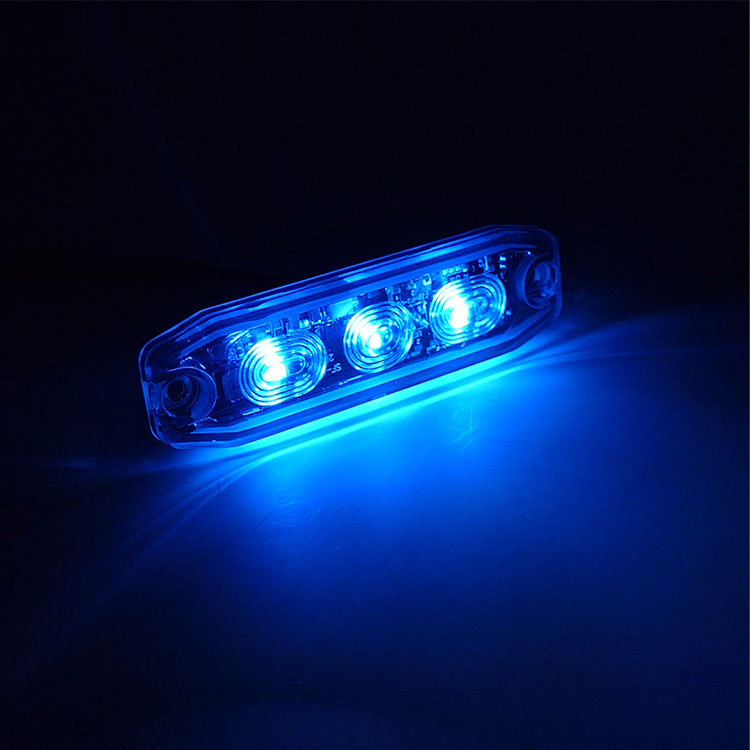

6. Amber, Blue, White, Red, Green for your options

7. ECE R10(EMC),ECE R65 and SAE

Product Qualification

Item	O3
Voltage	10-30V DC
Color	Single
Power	6x3W
IP	IP67
Wires	4-core wires
Mounting	3M, Bracket, Screw mount
Dimention	88mm (W) x 7mm (D) x 25mm (H)
Approval	R65，R10
