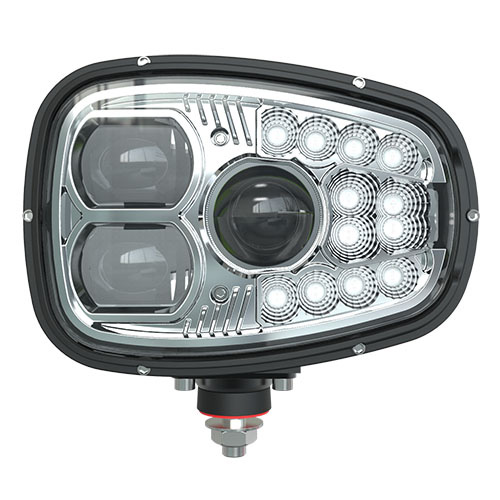

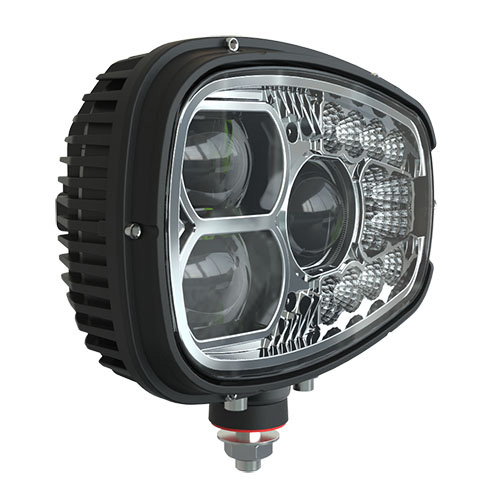

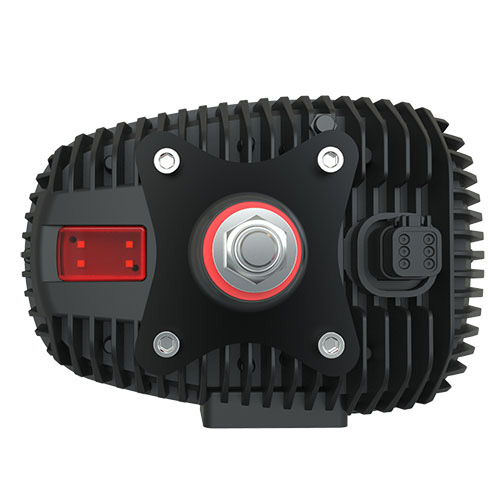

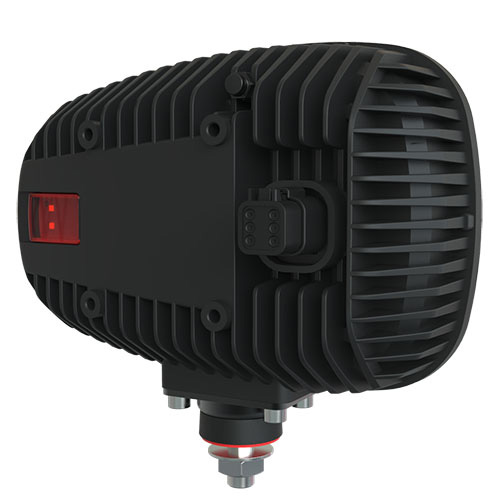

LED Driving Light Headlamp

Model:NW-HL

LED driving light headlamp NW-HL, the newest LED combination headlight takes traditional halogen headlight to a whole new level. LED driving light headlamp combining high beam, low beam, turning light, position light with R112, R6 and R7 certifications. The LED driving light headlamp light transmigration is much more stronger than normal halogen bulb.

Send Inquiry PDF DownLoad

Product Description
Specification
Dimension
Video

LED Driving Light Headlamp NW-HL

■ Nova® LED Driving Light Headlamp Product Introduction

The LED driving light headlamp NW-HL design with high beam and low beam, which is applying for driving DOT and E-mark approval. The LED driving light headlamp comes with excellent performance for heat elimination.

Die cast aluminium alloy housing ensures high durability with low maintenance. tempered glass lens, stainless steel bracket.

■Nova® LED Driving Light Headlamp Features

1.Dual voltage 12-36V.

2.Max Power 60W

3.Luminous flux: High beam 2500±250lm, Low beam1200±120lm

4.. LEDs:

High Beam 66W Color Temperature：5300-6000K

Low Beam 22W Color Temperature：5300-6000K

Turning Light 12W 4pcs*3W LED Amber

Position Light: Front: 3030LED 4pcs*1W Amber

Back:3030LED 6pcs*0.5W Amber

5.The valid irradiation distance is much more longer than regular bulb.

6.The high performance of tight waterproof,dust proof,quake proof.

7.The work light design with turning light and position light.

8.LED driving light headlamp has R112, R6 and R7 approval.

9.OEM and ODM service is available

10.IP67, IP69K

China LED Driving Light Headlamp Suppliers

Item	NW-HL
Voltage	12-36V
Max Power	60W
Lumens	High beam 1400±150lm Low beam 800±100lm
LED	High Beam 66W Low Beam 22W Turning Light 12W 4pcs3W Position Light: 4pcs1W Back: 6pcs*0.5W
IP	IP67,IP69K
Color Temp.	6500K
Function	Turning light, position light
Dimension	21417392mm
Working Temp.	-40-80℃
Certification	R112, R6, R7
Beam	High Beam, Low Beam
Connector	DT connector
